Laminated Steel Padlock with Blue Protective Bumper

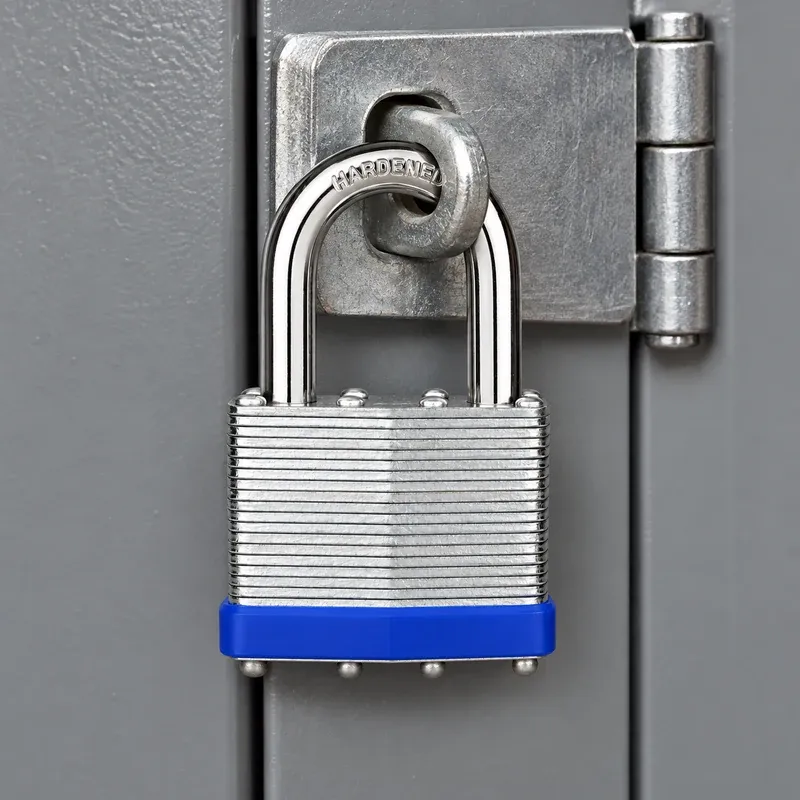

Laminated steel padlock with a standard-height shackle and blue protective bumper. Suitable for compatible lockers, cabinets, toolboxes and storage hasps, with a riveted steel body for commercial hardware supply and facility maintenance.
Specifications
- Lock Body
- Riveted laminated steel
- Shackle Style
- Standard-height hardened steel shackle
- Base Protection
- Blue protective bumper
- Finish
- Zinc palted
Laminated Steel Padlock with Blue Protective Bumper
This laminated steel padlock features a riveted steel body, a standard-height shackle and a blue protective bumper. It is suitable for compatible lockers, cabinets, toolboxes and storage hasps, supporting commercial hardware supply and facility maintenance.

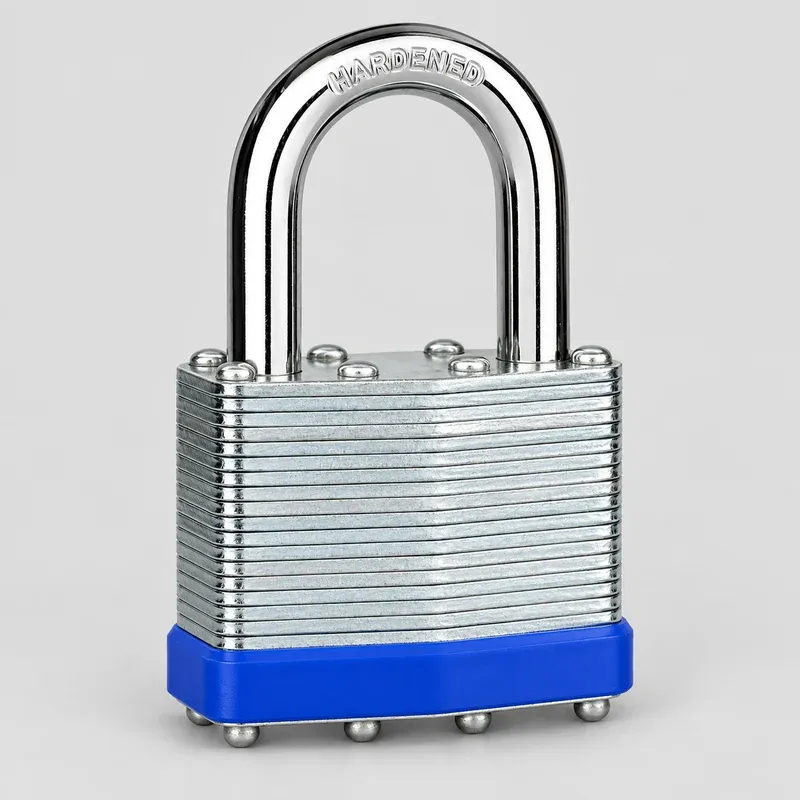

Laminated Steel Body
Stacked steel plates are secured with rivets to form the lock body. The blue lower bumper helps reduce direct metal contact with surrounding surfaces.
Standard Shackle Configuration
The standard-height shackle is intended for locking points that do not require extended reach. Check the shackle diameter and internal clearance against the intended hasp before ordering.
Size Range & Dimensions
The supplied size chart covers models SP30, SP40, SP45, SP50 and SP65. Dimensions below retain the original supplier reference codes.

Model | Nominal Size | A | B | C | D — Standard | E | F — Diameter |
|---|---|---|---|---|---|---|---|
SP30 | 30 | 31 | 26.4 | 14.5 | 16.5 | 17.5 | 5 |
SP40 | 40 | 40 | 33 | 20.4 | 23.5 | 22.5 | 6.1 |
SP45 | 45 | 45 | 33 | 21 | 24 | 23.5 | 7 |
SP50 | 50 | 50 | 37.5 | 24.2 | 27 | 26 | 8.8 |
SP65 | 65 | 65 | 46.5 | 30 | 36.5 | 31 | 11 |

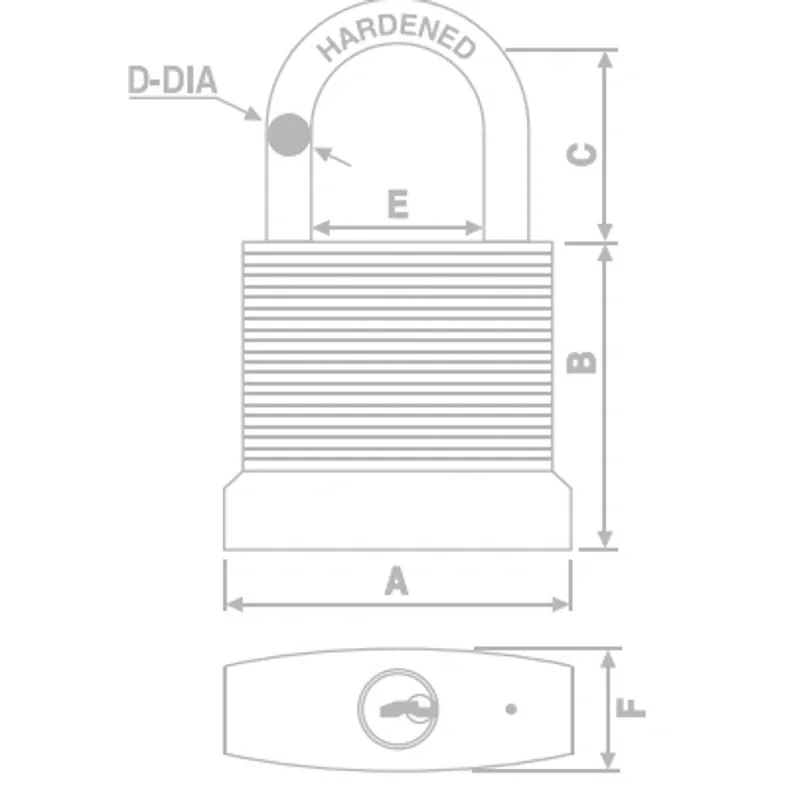

Outline Drawing
See the outline drawing below for the measurement locations. The drawing is a reference illustration, not a scale drawing.
Ordering Information
For bulk enquiries, specify the model, required dimensions, keying arrangement, quantity and packaging requirements. Confirm the selected model and fit before placing an order.
Long Shackle Laminated Steel Padlock
This long shackle laminated steel padlock combines a riveted steel body with an extended-height shackle and a dark protective bumper. It is intended for compatible locking points requiring additional vertical clearance.

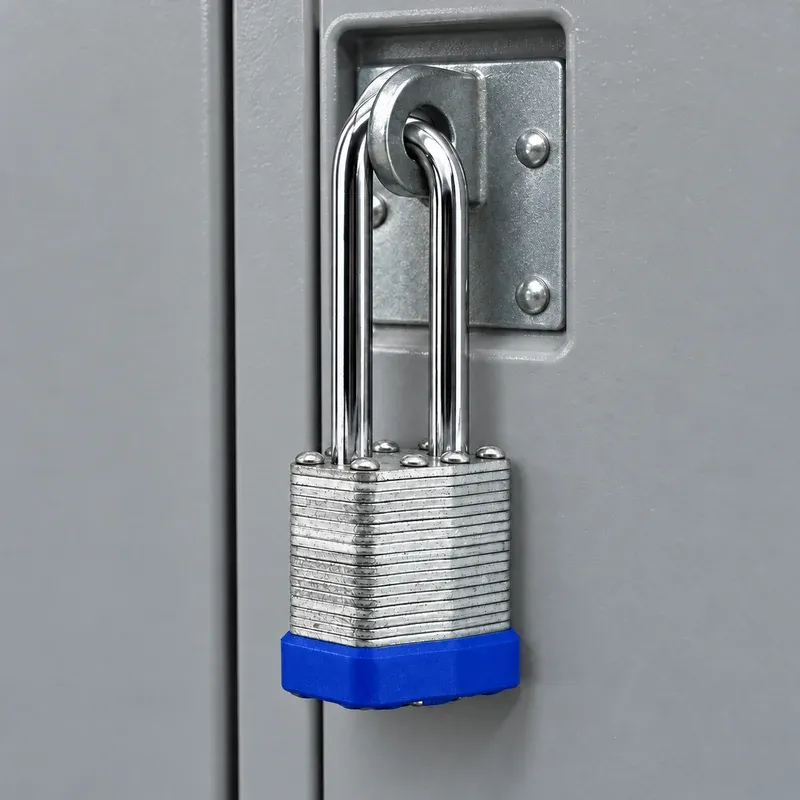

Extended Shackle Reach
The longer shackle provides additional reach for recessed hasps and other locking points where a standard-height shackle may not fit. Select the shortest shackle that accommodates the installation to avoid unnecessary exposed length.
Riveted Body with Protective Bumper
The laminated steel body is assembled from stacked plates secured with rivets. A dark lower bumper helps reduce contact between the metal body and adjacent surfaces.
Size Range & Dimensions
The supplied chart lists the following long-shackle dimensions for models SP30–SP65. Original supplier reference codes are retained below.

Model | Nominal Size | A | B | C | D — Long | E | F — Diameter |
|---|---|---|---|---|---|---|---|
SP30 | 30 | 31 | 26.4 | 14.5 | 39.5 | 17.5 | 5 |
SP40 | 40 | 40 | 33 | 20.4 | 46.5 | 22.5 | 6.1 |
SP45 | 45 | 45 | 33 | 21 | 56 | 23.5 | 7 |
SP50 | 50 | 50 | 37.5 | 24.2 | 59 | 26 | 8.8 |
SP65 | 65 | 65 | 46.5 | 30 | 84 | 31 | 11 |

Outline Drawing
The illustration below shows general measurement locations only. It depicts a standard-shackle outline; refer to the long-shackle dimensions above when selecting this version.
Commercial Procurement
For quotation requests, provide the model, required shackle clearance, keying requirements, packaging and order quantity. Door hardware suppliers and facility buyers should verify dimensional compatibility before purchasing.
